Huile hydraulique anti-usure L-HM 46 exportée au Japon dans le cadre d'un appel d'offres gouvernemental pour des travaux d'aménagement paysager

Hefei, China — June 2026.  Anhui Zhongtian Petrochemical Co., Ltd. has shipped a full 20-foot standard container of L-HM 46 high-pressure anti-wear hydraulic oil to Japan in fulfillment of a government-tendered parks and landscaping procurement project. This case study documents the product specifications, quality certifications, standards compliance, and logistics details behind the order — and explains why a Japanese public-sector buyer selected a Chinese manufacturer with over 28 years of lubricant production history.

The Order at a Glance

What Is L-HM 46 High-Pressure Anti-Wear Hydraulic Oil?

L-HM hydraulic oil belongs to the ISO 6743-4 / ISO 11158 family of anti-wear (HM-type) mineral hydraulic fluids. In China, the governing standard is GB 11118.1-2011. The designation ‘L-HM’ specifies: L = lubricant; H = hydraulic; M = anti-wear additive treatment. The prefix ‘high-pressure’ in the product name indicates formulation for systems operating at pressures above 25 MPa (250 bar), as defined by GB 11118.1 — which is precisely the operating regime of the excavators, compactors, and hydraulic lifts common in government landscaping fleets.

ISO VG 46 Viscosity and Pump Compatibility

ISO VG 46 means the oil carries a kinematic viscosity of approximately 46 mm²/s at 40°C, per ISO 3448. This grade is the industry standard for year-round hydraulic system operation in moderate climates — exactly the operating range for grounds-maintenance equipment in Japan, where seasonal temperatures fall within the 5–35°C ambient envelope. ISO VG 46 is compatible with vane, gear, and axial/radial piston pumps at pressures up to 350 bar (35 MPa). It is also the default factory fill in many Komatsu, Kobelco, and Caterpillar mini-excavators used in municipal landscaping operations.

GB 11118.1-2011 — China’s High-Pressure HM Standard

GB 11118.1-2011 is the current Chinese national standard for anti-wear hydraulic oils. The HM classification covers: kinematic viscosity grade, viscosity index (≥95 for ISO VG 46), oxidation stability (long-drain performance via ASTM D943), hydrolytic stability (ASTM D2619, ≤0.2 mg/cm² copper weight loss), anti-wear performance on vane and piston pump test rigs, rust inhibition (ASTM D665), foam suppression (ASTM D892), and demulsibility (ASTM D1401). The ‘high-pressure’ designation within GB 11118.1 maps closely to international benchmarks including DIN 51524 Part 2 (HLP) and the Eaton-Vickers M-2950-S and Cincinnati Milacron P-70 OEM specifications.

Key Measured Properties — Typical Data

Note: Typical data values are representative of production-grade L-HM 46 formulated to GB 11118.1-2011. Actual batch values may vary within specification limits. Certificates of Analysis (CoA) are issued per production batch and available upon request.

Standards and Approvals That Matter to Japanese Buyers

Japanese B2B procurement is consensus-driven (nemawashi) and heavily front-loaded: the majority of the supplier decision is made before vendor contact, typically through a 商社 (trading company / sōshā) intermediary who aggregates documented proof for internal approval. The following approvals and standards are the specific signals Japanese procurement officers and 商社 intermediaries look for when evaluating a hydraulic oil supplier.

Parker Hannifin (Denison) HF-0 — The Industry’s Most Rigorous Bench-Pump Protocol

Anhui Zhongtian Petrochemical Co., Ltd. is listed on Parker Hannifin’s (Denison) approved fluids roster for hydraulic oils of the L-HM type. Denison HF-0 is widely recognized as the most comprehensive pump-plus-bench test protocol in the anti-wear hydraulic oil category. It combines: ASTM D943 oxidation life (>1,000 hours), ASTM D2619 hydrolytic stability (copper weight loss ≤ 0.2 mg/cm²), ASTM D4310 sludge (1,000-hour sequence), wet and dry filterability, ASTM D665 rust inhibition, and ASTM D892 foam stability. An independently verified OEM approval provides a level of procurement assurance that self-declared product specifications alone cannot — which is exactly the kind of evidence Japanese buyers weight most heavily in vendor qualification.

DIN 51524 Part 2 (HLP) and ISO 11158 (HM) Cross-Reference

The L-HM 46 formulation cross-references DIN 51524 Part 2 (HLP — Germany’s anti-wear hydraulic oil standard) and ISO 11158 (the international HM specification), both widely cited in Japanese equipment service manuals and procurement specifications. Cross-referencing these standards enables buyers to verify performance against multiple international benchmarks — a key due-diligence requirement for mixed-origin equipment fleets typical of Japanese municipal operations. Additional cross-references include Eaton-Vickers M-2950-S and Cincinnati Milacron P-70 (ISO VG 46).

JCMAS HK and JIS Context — Japan’s Equipment-Specific Standards

For government buyers operating Japanese-manufactured construction or grounds-maintenance equipment, JCMAS P 041:2004 (JCMAS HK) is the relevant hydraulic fluid specification. Drafted by Komatsu, Hitachi Construction Machinery, Kobelco, Sumitomo, and Shin Caterpillar Mitsubishi, JCMAS HK uniquely evaluates friction characteristics alongside conventional anti-wear, rust, and foam performance — reflecting the specific hydraulic system requirements of Japanese construction machinery. Zhongtian’s L-HM 46 is formulated to the performance level required by JCMAS HK for standard anti-wear (zinc-based) hydraulic fluids.

Viscosity context for Japanese buyers: JIS K 2001 (Japan’s adoption of the ISO viscosity classification system) and JIS B 9930 (contamination level measurement) provide the domestic reference framework. ISO VG 46 maps directly onto standard Japanese equipment requirements at 46 mm²/s @ 40°C.

Why a Japanese Public-Sector Buyer Chose Zhongtian

28 Years of Documented Lubricant Manufacturing History

Anhui Zhongtian Petrochemical Co., Ltd. (中天石化) was founded in Hefei, Anhui, China in 1998. The company has produced industrial lubricants for over 28 years — a track record that matters in Japan, where buyer trust is built on consistent long-term performance, not marketing language. Zhongtian is a National High-Tech Enterprise certified by China’s Ministry of Science and Technology, holds both ISO 9001 (quality management) and ISO 14001 (environmental management) certification, and carries National Green Factory and national specialized ‘little giant’ SME designations — each independently audited and renewably verified.

Independently Audited Quality Infrastructure

For 商社 intermediaries preparing supplier qualification documentation, the full credential list — ISO certificates, product registration numbers, and available TDS/SDS downloads — can be requested through Zhongtian’s export sales team.

Application Fit — Landscaping and Grounds-Maintenance Equipment

Government parks and landscaping operations rely on a range of hydraulically-powered equipment: mini excavators, compact track loaders, aerial work platforms (AWPs), knuckleboom loaders, mowing tractors with hydraulic cutting decks, and compact utility loaders. ISO VG 46 AW oil is the standard factory fill for all of these in moderate climates, providing the correct viscosity-temperature profile for both summer operating conditions (oil sump temperatures of 50–80°C) and cool morning start-up in typical Japanese municipal environments (ambient temperatures as low as −5°C).

The key performance characteristics for landscaping applications are:

• Anti-wear: Protects high-cycle actuator circuits in excavator arms and compactor mechanisms against metal-to-metal contact under repeated load cycling.
• Oxidation stability: Enables extended drain intervals under continuous outdoor operation — reducing downtime during peak maintenance seasons.
• Demulsibility: Ensures rapid water separation in equipment exposed to rain, irrigation runoff, or pressure-washing.
• Foam suppression: Maintains hydraulic responsiveness in cylinders subject to rapid cycling at partial fill levels.
• Low-temperature flow: Pour point of ≤ −12°C allows cold-morning start-up without hydraulic sluggishness.

Packaging and Logistics — 20ft Container to Japan

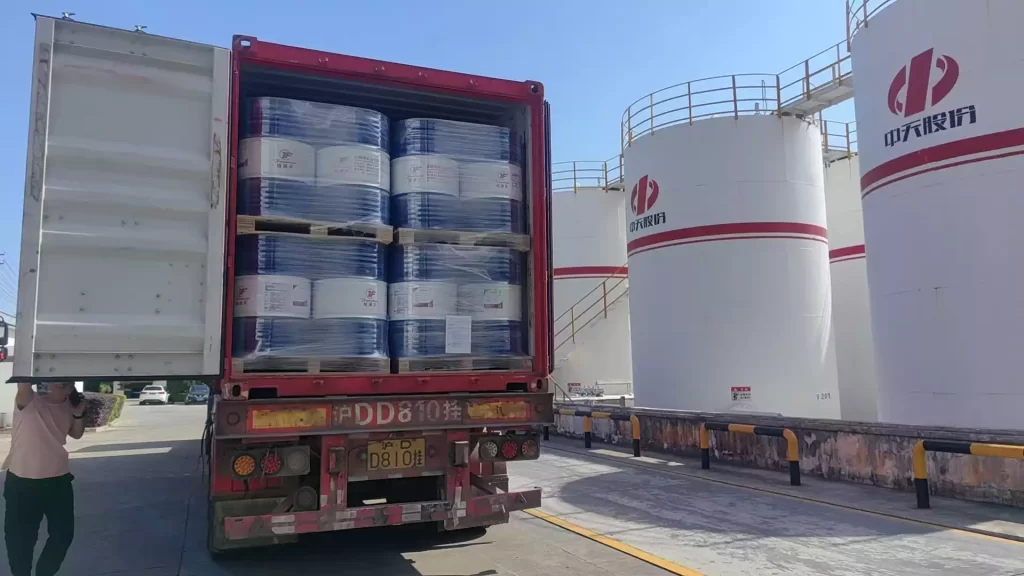

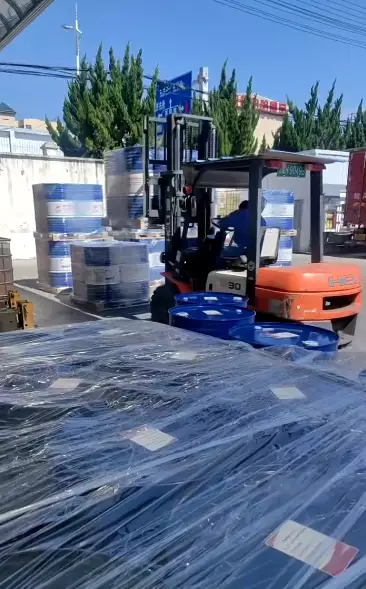

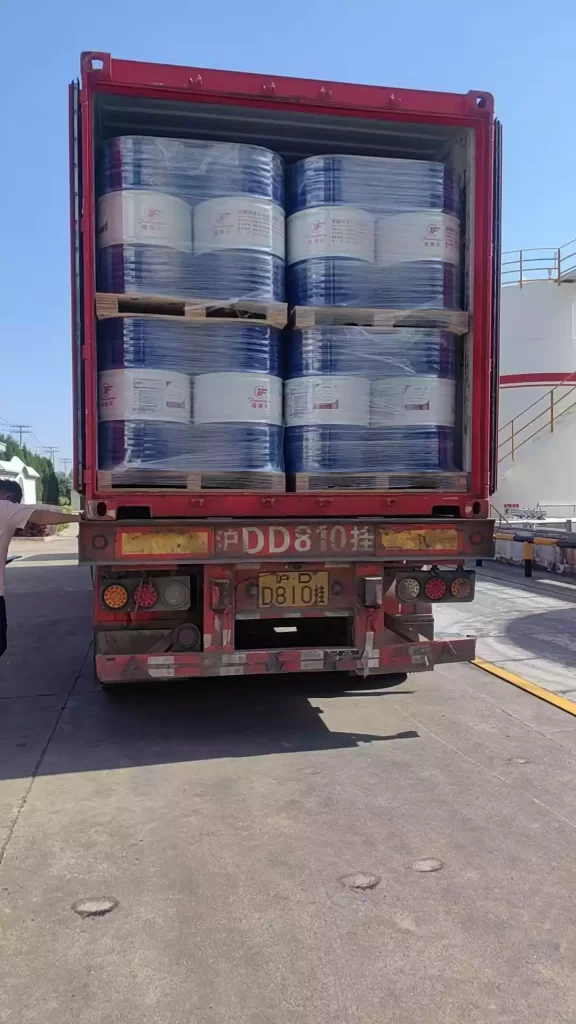

The Japan government landscaping tender order was fulfilled in a 20-foot standard container (ISO 668). Zhongtian supplies hydraulic oil in a range of packaging formats including 200L steel drums (the standard for bulk industrial supply), 20L and 10L plastic pails, and IBC tote tanks. For a 20ft container, the typical configuration is 80–100 steel drums of 200L, representing approximately 16–20 metric tons of product depending on stacking geometry and port gross vehicle weight limits.

Shipment documentation — including Certificates of Analysis (CoA), Safety Data Sheets (SDS/MSDS), and GB 11118.1 conformity statements — is prepared within 24 hours of order confirmation and provided with every export shipment as standard.

Questions fréquemment posées

Q: What is the difference between L-HM 46 and M-HM 46?

Under GB 11118.1-2011, L-HM is the high-pressure anti-wear grade, formulated for systems operating above 25 MPa (250 bar). M-HM is the medium-pressure grade, suitable for systems up to approximately 14 MPa. Both carry ISO VG 46 viscosity. For government landscaping equipment with high-cycle hydraulic actuators — excavator arms, compactor circuits, and aerial platform cylinders — L-HM (high-pressure) is the correct specification.

Q: Does Zhongtian’s L-HM 46 meet Denison HF-0 requirements?

Anhui Zhongtian Petrochemical Co., Ltd. is listed on Parker Hannifin’s (Denison) approved fluids roster for L-HM hydraulic oils. The reference document is the Parker Hannifin approved fluids list dated 2019. Buyers requiring confirmation of current listing validity for procurement documentation should contact Parker Hannifin directly.

Q: Can L-HM 46 be used in all brands of excavator?

L-HM 46 (zinc-based anti-wear / ZDDP) is suitable for the majority of excavator brands including Kobelco, Komatsu, Caterpillar, and most Hitachi models that accept a standard zinc-type anti-wear fluid. However, certain Hitachi and Deere-Hitachi models specify a zinc-free (ashless) fluid — in those cases, Zhongtian’s L-HE (Ashless Anti-Wear Hydraulic Oil) is the appropriate product. Always consult the OEM service manual before substituting hydraulic fluid grades.

Q: What documentation is available for Japanese import compliance?

Zhongtian provides per-batch Certificates of Analysis (CoA), Safety Data Sheets (SDS/MSDS) in Chinese and English, commercial invoice and packing list, and Bill of Lading. Third-party test reports can be arranged on request. All documentation is ready within 24 hours of order confirmation.

Q: What is the minimum order quantity for Japan export?

Minimum order quantities are negotiable. Zhongtian accepts both small orders and full container loads. Standard lead time is 3–7 days for in-stock product and 15 days for custom production runs.

Q: How does Zhongtian handle quality control for export batches?

Every production batch is tested against GB 11118.1-2011 and cross-referenced against the relevant international benchmarks (ISO 11158, DIN 51524-2) before release. Batch CoAs are issued for all export shipments. The full production and quality management system is ISO 9001 certified, with environmental management certified to ISO 14001.

À propos de Zhongtian Petrochemical

Anhui Zhongtian Petrochemical Co., Ltd. (中天石化), founded in Hefei, Anhui, China in 1998, is a National High-Tech Enterprise and ISO 9001/ISO 14001-certified manufacturer of automotive, industrial, and specialty lubricants. With an annual production capacity of 200,000 metric tons and a formulation range of 2,000+ products, Zhongtian supplies lubricants to clients in over 100 countries. The company’s product lineup includes the full GB 11118.1-2011 hydraulic oil range, engine oils, gear oils, compressor oils, and specialty greases.
